Boekel Scientific

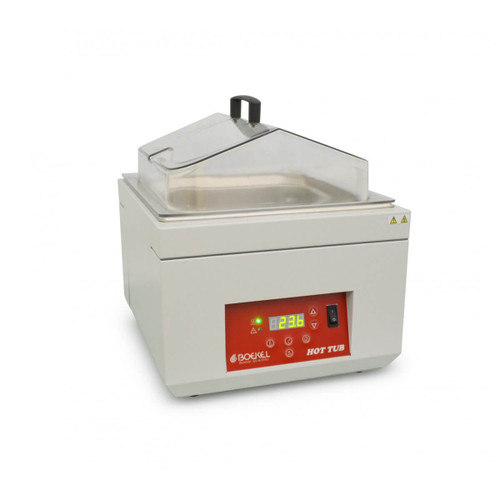

Medium Water Bath, Boiling Ability, Pc Lid 14L
- Part Number:
- BOE-290200
- Lead Time:
- 3-5 days
- Minimum Purchase:
- 1 unit
- Shipping:
- FREE SHIPPING on most orders over $50*
- Quantity:
- each
- Size:
- 14L
Bulk discount rates
Automatically save when you buy in bulk.
| Buy 6 - 11 | and get 10% off |
| Buy 12 or above | and get 15% off |
Description
The 14 Liter Boekel Scientific "Hot Tub" Laboratory Water Bath can be used as a standard water bath or as a boiling water bath. (Boiling requires an additional stainless steel gabled lid accessory, Part #BOE-290220.)
The unit has digitally controlled temperature with a built-in timer. The temperature control is extremely accurate due to a three point factory calibration and PID controller. Large digital display, passivated stainless steel tank, and heating indicator LED.
Space saving design allows for the most efficient use of your bench space and the PID Controller makes for easy temperature selection, rapid heat-up and excellent stability.
In addition, this General Purpose Water Bath line can also be used as a Boiling Bath by simply setting the temperature into a boiling mode (using optional SS lid.) With this convenient feature, you no longer need to purchase a separate, single function Boiling Bath.
- Programmable timer, up to 99hrs, 59mins. Bath will stop heating when timed mode is completed.
- PID Controller for Easy Temperature Selection, Rapid Heat-Up and Excellent Stability (+/- 0.2°C).
- 3 point factory programmed temperature calibration for accurate temperature control throughout the operating temperature range.
- Temperature set in 0.1°C increments up to 100.0°C.
- Seamless, passivated stainless steel tank; includes stainless steel diffuser tray/shelf.
- Recessed control panel - protects against spills
- Supplied with a Polycarbonate lid
- Large LED display can be clearly seen from a distance
- Adjustable over temperature safety cutout
- 2 year warranty
Applications:
- General purpose water baths offer excellent performance and are ideal for general lab applications.
- The special "boiling mode" is a convenient feature for melting agar and other applications requiring boiling temperature.
Specifications:
| Volume: | 6 L | 14 L | 28 L |
| Catalog Number: | 290100 (115V) 290100-2 (230V) | 290200 (115V) 290200-2 (230V) | 290300 (115V) 290300-2 (230V) |
| Product Dimensions W x D x H: | 33.66cm x 20.96cm x 25cm 13.25" x 8.25" x 9.88" | 33.66cm x 38.43cm x 24.46cm 13.25" x 15.13" x 9.63" | 33.66cm x 56.21cm x 29.54cm 13.25" x 22.13" x 11.63" |
| Bath Height w/ Lid: | 39.07cm / 15.38" | 39.37cm / 15.5" | 43.50cm / 17.13" |
| Tank Dimensions: | 30.0cm x 15.0cm x 14.0cm 11 3/4" x 6" x 5 1/2" | 30.0cm x 32.5cm x 17.0cm 11 3/4" x 12 3/4" x 5 3/4" | 30.0cm x 50.5cm x 19.0cm 11 3/4" x 20" x 7 1/2" |
| Timer: | Timer "ON", timer is settable up to 99hrs. 59min. or "OFF" mode to operate bath without timer. | ||
| Temperature Range: | Ambient +5°C to 100°C* or Boiling Mode** | ||
| Temp. Setting Range: | 0°C to 100°C in 0.1°C increments or Boiling Mode | ||
| Stability: | ±0.2°C | ±0.2°C | ±0.1°C |
| Temp. Setting Display: | digital/four digit LED | ||
| Display Resolution: | 0.1°C | 0.1°C | 0.2°C |
| Shipping Weight: | 6.35 kg (14 lbs) | 9.98 kg (22 lbs) | 14 kg (31 lbs) |
| Electrical: | 290100 115VAC; 50/60Hz** 290100-2 230VAC; 50/60Hz (CE)*** | 290200 115VAC; 50/60Hz** 290200-2 230VAC; 50/60Hz (CE)*** | 290300 115VAC; 50/60Hz** 290300-2 230VAC; 50/60Hz (CE)*** |
* A lid or layer of polypropylene spheres must be used when operating at 60°C or above
** Unit conforms to UL 61010A-1 and CSA C22.2 No 1010
***230V units are supplied with continental European plug.
