VICI DBS

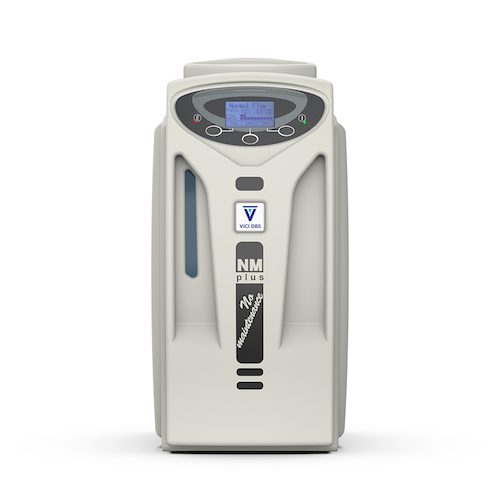

Hydrogen Gas Generator, NM 160 Plus, 160 ml/min Flow Rate
- Part Number:
- VC-DB-PNM160-US
- Lead Time:
- 2-4 weeks
- Shipping:
- FREE SHIPPING on most orders over $50*
- Quantity:
- each
- Size:
- 160 ml
Description
The NM Plus 160 Hydrogen Generator enhances the high performance of the PG Plus with the addition of a unique no-maintenance purification system, resulting in ultra high purity carrier grade gas. The highly sophisticated software control and safety alarm capability maximize the benefits of using hydrogen carrier gas while minimizing the safety concerns.
The new NM Plus series hydrogen generators use the latest polymer electrolyte membrane (PEM) technology to produce high purity hydrogen. The exclusive "No Maintenance" gas column cold dryer regeneration system eliminates all down time for maintenance that is typical of other systems on the market, assuring the best hydrogen purity at all times.
NM PLUS 160 FEATURES:
- Flow rate 160 ml/min
- Purity 99.99996%
- Pressure up to 11 bar (160 psi)
- Unique patented automatic dryer system
- Unique 100% titanium electrolytic cell
- No maintenance
- 2 year standard warranty
- Download PDF Spec Sheet
Part# VC-DB-PNM160-US (115V/60Hz)
Part# VC-DB-PNM160-EU (230-240V/50-60Hz)
Part# VC-DB-PNM160-JP (100V/60Hz)
APPLICATIONS
GC APPLICATIONS
- GC/MS CARRIER GAS
- GC CARRIER GAS
- GC FUEL GAS
- GC-ELCD & HALL ELCD REACTION GAS
SPECTROSCOPY APPLICATIONS
- ICP-MS COLLISION CELL REACTION GAS
ANALYZER APPLICATIONS
- TOTAL HYDROCARBON ANALYZER (THA) FUEL GAS
- CHEMISORPTION/PHYSISORPTION MEASUREMENT GAS
OTHER LAB APPLICATIONS
- CHEMICAL VAPOR DEPOSITION INSTRUMENTATION (CVD)
AID DEPOSITION PROCESS
- PLASMA CLEANING INSTRUMENTATION (UCP)
- HIGH EFFICIENCY PROCESS GAS
- HYDROGENATION REACTORS
- HYDROGEN FUEL CELLS
- WEATHER BALLOON FILLING
- ELECTRONIC NOSE (eNOSE)
- 2-D CHROMATOGRAPHY
- 3-D CHROMATOGRAPHY
| Flow ml/min. | 160 |
| Purity | 99.99996%+ |
| Dew point at 7 bar | -73°C (-103°F) |
| Outlet pressure bar (psi) | 1.4 to 11 (20 to 160) |
| Technology | PEM (Proton Exchange Membrane) - 100% Titanium cell |
| Drying system | No maintenance cold dual dynamic regeneration system |
| Deionized water quality | minimum < 1 micro S/cm @25°C- 1 Mohm-cm@25°C- ASTM II recommended < 0.2 microS/cm @25°C- 5 Mohm-cm @25°C- ASTM II |
| Internal water tank (liters) | 2.5 |
| Safety | Automatic shut down - internal/external hydrogen leak, overpressure and low water |
| Display | Touch screen with operating parameters, system status and safety alarms |
| LED indicators | Power on / off, system ready, errors |
| Interface | USB mod A |
| Electrical supply | 110-120V 60Hz / 220-240V 50Hz |
| Power consumption watts | 120 |
| Product Dimensions mm (in.) | 230W x 480H x 370D (9W x 19H x 15D) |
| Product Weight kg (lb) | 14 (31) |
| Shipping dimensions | 580W x 570H x 400D (22.8W x 22.4H x 15.7D) |
| Shipping weight kg (lb) | 18 (39.5) |
| Operating Temperature °C (°F) | 15 to 35°C (59 to 95°F) |
| Outlet connection | 1/8" Compression |
| Certification | CE, MET, FCC |
Product Options and Customizations
- I/O board
- Remote control software (RS232 or USB)
- Cascading hardware (standard or high purity)
- Autorefill
- H2 Sensor
Please note: VICI products are not eligible for coupons and discounts.
