Chemglass
32mm O-Ring Flat Flange, Tube ID: 27mm, Tube OD: 32mm, O-Ring Size 222, each
- Part Number:
- CG-138-01
- Lead Time:
- 5-7 days
- Minimum Purchase:
- 1 unit
- Shipping:
- FREE SHIPPING on most orders over $50*
- Quantity:
- each
- Size:
- 222
- Country of Origin:
- Made in the USA
Description

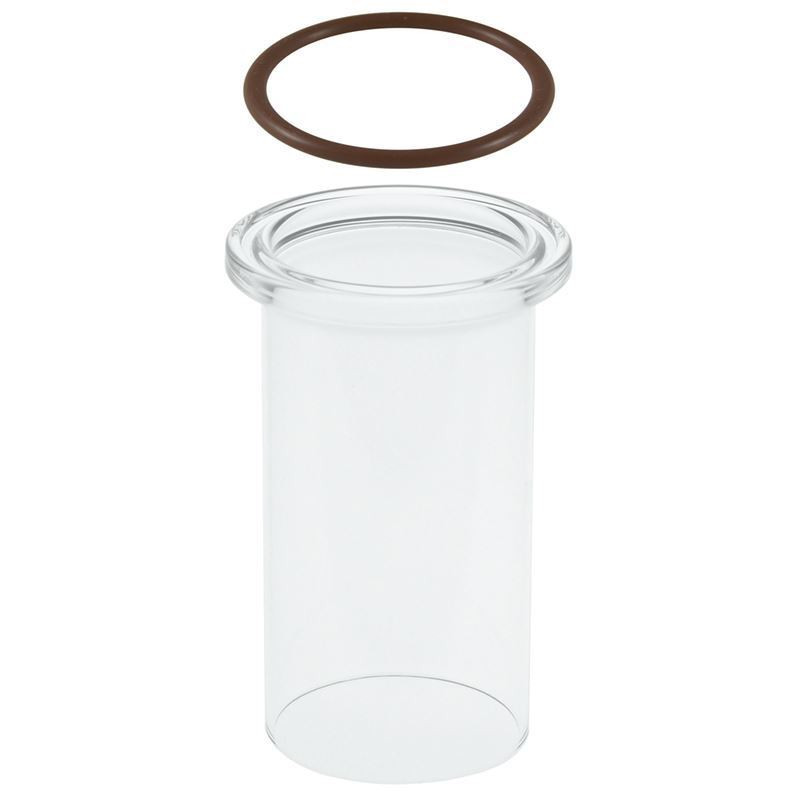

32mm O-Ring Flat Flange, Tube ID: 27mm, Tube OD: 32mm, O-Ring Size 222. Similar to CG-135 flange but with the mating end of the flange having a precision formed o-ring groove instead of being ground. Joint provides a grease-free vacuum tight seal when used with the CG-139 clamp. O-ring is included with each flange and can be ordered separately, see CG-305. Made in the United States.
View AllClose
MPN:
CG-138-01
